How to Overclock Your Intel or AMD CPU (Guide) #GeekLeap

So that you spent cash on a high-performance CPU, and maybe it was one of many Thirteenth-Gen Intel CPUs that you just’ve paid further for as properly. And now, you need to overclock it to get the utmost efficiency out of the processor. Honest sufficient! Normally, individuals are considerably petrified of overclocking as a result of it’s principally like working your processor at settings which might be utterly totally different from the inventory limits. However don’t fret. Whether or not you need to do some primary overclocking and efficiency tuning or try to interrupt previous the turbo velocity of your CPU, we have now you coated. Here’s a step-by-step information to overclock your Intel or AMD CPU.

You want to use the motherboard BIOS or sure software program like Intel’s Excessive Tuning Utility (XTU) or AMD’s Ryzen Grasp to overclock your CPU. However first, we’ll clarify issues it’s best to keep in mind after which dive into primary and superior overclocking strategies.

Issues to Keep in mind Earlier than Overclocking CPU

• Overclocking Can Void Your Guarantee

We don’t imply to discourage you immediately, nevertheless it wouldn’t be proper to not let you know the hazards of overclocking your CPU. The guarantee insurance policies set by CPU producers in relation to overclocking point out that each Intel and AMD reserve the proper to void your guarantee for utilizing nearly any overclocking characteristic. Options corresponding to Intel’s Multi-Core Enhancement (MCE) or AMD’s Precision Enhance Overdrive (PBO) will even “technically” void your CPUs guarantee. However, many customers have reported having the ability to go guarantee checks with none points, even with options like XMP, PBO, or Auto OC enabled up to now or current.

• Guarantee Motherboard & CPU Help Overclocking

Subsequent, do verify in case your motherboard and CPU help overclocking. The ‘Ok’ sequence CPUs from Intel help overclocking, however not all their motherboards do. For AMD Ryzen, whereas overclocking is unlocked even on the lower-tier Ryzen 3 processors, sure Non-x variants just like the Ryzen 7 2700 don’t help PBO or Auto-OC options. So, earlier than you start the overclocking course of, verify the person manuals for the CPU and motherboard to verify this.

• Guarantee Your Cooler & Energy Provide Is Enough for Overclocking

Whereas this is perhaps apparent to many, your CPU will eat extra energy when overclocked in comparison with its inventory state. Now, to fight that, be sure that your CPU cooler is enough sufficient for overclocking, i.e. it ought to have the ability to adequately help the max TDP (thermal design energy) of your processor.

For overclocking, your CPU cooler ought to lots of headroom. So, verify the CPU temperatures throughout intensive duties such because the Cinebench R23 benchmark (used typically in our CPU critiques) or a heavy recreation like Cyberpunk 2077. If, at any level, the CPU temp reaches round 80-90 levels Celcius, you want a greater cooling answer. The customer’s information linked right here will show you how to discover the most effective AIOs and air coolers to keep away from thermal points.

Moreover, you want an influence provide with tons of headroom and thermal paste to your CPU. For solutions on a number of the greatest overclocking-friendly thermal pastes, learn our greatest thermal pastes information linked right here.

• Take a Benchmark of Your Inventory Efficiency

Lastly, keep in mind to take a benchmark of the inventory efficiency of your CPU. Why, you ask? So, you’ll be able to examine the efficiency earlier than and after overclocking your CPU with ease. Artificial benchmarks corresponding to Cinebench R23 are excellent for this job.

Overclock Intel CPU: A Step-by-Step Information

As a prerequisite, producers ask you to replace your BIOS and get the most recent driver updates (particularly to your chipset) earlier than working utilities like Intel XTU or AMD Ryzen Grasp. So comply with this information to replace Home windows 11 and set up all the most recent drivers to your PC. When achieved, proceed to replace your BIOS by following this information, which exhibits you tips on how to discover the BIOS replace file and replace it with ease. After that, time to begin the overclocking course of:

1. First, head into your motherboard’s BIOS. To do that, shut down your PC utterly and press the F2 or Delete key in your keyboard as quickly because the PC begins. If that doesn’t enter you into BIOS, take a look at the underside of the startup display screen to find the important thing it’s essential to press to enter your BIOS. Observe this information on tips on how to enter the BIOS in Home windows 11 in case you are nonetheless confused concerning the course of.

2. Now, reset your motherboard BIOS to the default settings. This step is very really helpful earlier than we begin utilizing AMD Ryzen Grasp or Intel’s Excessive Tuning Utility (XTU) to allow overclocking options.

3. Subsequent, it’s important to disable VBS in your Home windows. That is required for working AMD and Intel’s overclocking utilities. For this, consult with our information on tips on how to disable virtualization-based safety (VBS) in Home windows.

4. With that out of the way in which, let’s begin by downloading Intel’s Excessive Tuning Utility (XTU) from this hyperlink. After getting downloaded it, undergo the setup and set up it in your PC. You want to restart your PC earlier than starting to make use of XTU.

5. Subsequent, open Intel XTU and navigate to the “Pace Optimizer” part. Right here, click on on Optimize Now in the proper pane. Click on on “I agree“ when prompted, and Intel XTU will overclock your CPU by modifying its core frequencies and rising its energy limits.

Observe: Is this feature greyed out or not seen to your processor? Don’t fear, you’ll be able to nonetheless overclock your CPU. To take action, skip to the sixth step on this part.

6. Now, you’ll be able to take a look at the assorted adjustments that Pace Optimizer did by scrolling down under in XTU. As you’ll be able to see, it overclocked our i7-13700KF with a rise of about 200MHz on each core. Together with this, it turned on Intel’s Thermal Velocity Enhance setting and elevated the Turbo Enhance Energy restrict. Do keep in mind to notice the newly modified turbo increase energy restrict right here as a result of in a later step we’ll present you tips on how to enhance this whether it is possible to switch your turbo energy limits additional.

Observe: The Pace Optimizer characteristic and Intel Thermal Velocity Enhance each work on the idea of your CPU cooler’s functionality. For instance, if in case you have a mid-range however high-performance air cooler, which has about 50W of TDP headroom to your CPU, then ISO & TVB will each analyze that and increase your CPU frequencies and energy limits. So if in case you have a high-performance AIO liquid cooler, which supplies you over 100W of headroom (a hypothetical assumption), these options will leverage that for even increased energy limits and frequencies.

7. Subsequent, navigate to the “Stress Check” tab in XTU. We are going to take a look at our CPU right here, but when the OC failed, then Intel XTU will already be restarting your system and setting again the settings to inventory. This take a look at received’t assist us set up any efficiency numbers (that can come later). However we’ll do that take a look at in XTU to carry out a small, preliminary verification of the CPU’s stability below this automated overclocking characteristic. Now, outline the length of the stress take a look at at 10 minutes. Subsequent, click on on ‘Begin Testing‘ to start the stress take a look at.

8. Now, the CPU stress take a look at will run for the subsequent ten minutes. You possibly can observe the temperatures, thermal design energy (warmth outputted by the processor measured in watts), and some different issues within the backside proper. So long as your CPU cooler is succesful, Intel Pace Optimizer’s automated OC will likely be profitable for many customers. After the stress take a look at is over, it is going to say “The CPU Stress Check Handed” within the log.

Observe: This can be a preliminary stress take a look at. When you can enhance the length right here, we desire that you just carry out a correct stress take a look at utilizing the artificial benchmark known as Cinebench R23, which we’ll discuss within the closing part. Intel XTU additionally has benchmarking instruments, if you happen to nonetheless desire to make use of these.

9. To overclock your Intel Ok-series processor that doesn’t have Intel’s Pace Optimizer perform, you’ll be able to run the Efficiency Maximizer software by Intel, which was launched for earlier generations. The chipmaker has proven the steps on tips on how to obtain & set up it, and likewise carry out the OC, so go forward and go to the hyperlink if the Pace Optimizer characteristic that was proven above is just not obtainable to your CPU.

10. There’s one last item you may activate when you are within the Intel XTU app, i.e. Intel Multi-Core Enhancement (MCE). We enabled it within the overclocking part of our Intel i9-13900K assessment, however MCE is a characteristic that works with various ranges of advantages. In our testing, it didn’t lead to higher efficiency, as a substitute extreme voltage was fed to CPU cores and we noticed pointless boosted frequencies throughout idle workloads.

Voila! You might have overclocked your Intel CPU efficiently. Now that you’ve overclocked your CPU, it’s time to carry out a correct, prolonged stress take a look at. Earlier than deciding to make use of these settings 24/7, it’s essential that you just verify the soundness in addition to the efficiency enhancements in an artificial benchmark, and your private use-cases too. We are going to try this within the stress take a look at and benchmarking part under.

Overclock AMD CPU: A Step-by-Step Information

After getting finalized your overclocking settings by means of Ryzen Grasp, and likewise confirmed the soundness of your CPU, it’s a good suggestion to use these settings within the BIOS. After doing that, you’ll be able to uninstall Ryzen Grasp if wanted since your settings will likely be enforced on the BIOS degree.

1. Begin by downloading the AMD Ryzen Grasp utility from this hyperlink. It’s important to scroll all the way in which down to search out the obtain button. After getting downloaded it, undergo the setup and set up it. Subsequent, restart your PC earlier than utilizing Ryzen Grasp.

2. Subsequent, open Ryzen Grasp and go to both Profile 1 or Profile 2 choices. Keep in mind that is the Ryzen Grasp Profile you’ll set the overclocks in place with. Now, you’ll discover there may be the choice to allow “Auto Overclocking” and “Precision Enhance Overdrive” right here.

3. You want to activate Precision Enhance Overdrive first, after which click on on “Apply & Check” utilizing the button on the backside. Your system will restart after which Ryzen Grasp will do a primary stress-test to make sure stability. In case your system is secure, go to this part of the information the place we show you how to carry out a correct, 30-minute stress-test and set up efficiency numbers too. Keep in mind to do that, earlier than persevering with this step additional.

4. Now, if turning PBO provides you higher efficiency and your system is totally secure, you’ll be able to attempt enabling “Auto Overclocking” as properly. Once more, after turning it on click on on “Apply & Check,” after which the system will restart and Ryzen Grasp will do a brief stress take a look at to make sure the setting’s stability. Whether it is profitable, keep in mind to click on “Save Profile” to finalize your OC settings.

Auto OC is an extension of Precision Enhance Overdrive and lets you obtain even quicker single-core frequencies. PBO helps in reaching increase clocks extra typically, and you will get an honest increase in efficiency when mixed with Auto Overclocking. A number of customers have additionally seen worse efficiency in comparison with inventory particularly in gaming, so ensure you consult with the benchmarking & stress-testing part of this information after enabling Auto Overclocking.

In Auto Overclocking, there may be additionally an choice known as “Enhance Override CPU.” You possibly can enhance this utilizing the arrows highlighted within the demonstration above however ensure that to run a stress take a look at after each incremental enhance that you just do. You’ll discover that there are different settings right here as properly, like PPT, TDC, and EDC. We are going to clarify this if you happen to want to tune Auto OC or PBO settings additional.

• PPT: This refers to Package deal Energy Monitoring, and this setting defines the utmost energy that may be delivered to your motherboard’s socket, which is the place the CPU is put in. You possibly can enhance this with increments however keep in mind to stress-test as properly earlier than leaping on to the utmost allowed increment. Why does ours say 1000, when Ryzen 3600 has a restrict of 65W? That’s as a result of these overclocking options have totally unlocked the ability restrict.
• TDC: This refers to Thermal Design Present, and this setting defines the utmost amperage to be delivered to your processor by the VRMs of your motherboard, throughout sustained hundreds. We suggest that almost all customers go away this setting on default.
• EDC: This refers to Electrical Design Present, and this setting additionally defines the utmost amps to be delivered to your CPU by the VRMs, however the distinction between TDC is that this one applies to short-term workloads. Once more, we suggest this setting to be left on default for many customers.

3. Congrats! You might have now overclocked your AMD CPU. Nonetheless, some issues are left for us to do. After you have got the ultimate settings of your overclock in place, go to the stress-test and benchmarking part of this information the place we’ll use Cinebench R23. It is very important verify your stability with the prolonged stress take a look at, earlier than you begin utilizing these settings on a regular basis.

Superior CPU Overclocking Information: Handbook OC for Specialists

1. Firstly, analysis the utmost secure voltage vary of your CPU. Many individuals have conflicting opinions as to what’s thought of secure, however the person expertise is your greatest to get some numbers. There are individuals who have confirmed stability at extraordinarily excessive voltages but their CPU died just a few years down the road. Therefore, you will need to be very conservative, and on the secure aspect, with regards to the voltage you set your CPU at. Overclocking doesn’t essentially should decrease the lifespan of your CPU, so long as you run it at secure settings.

For our Ryzen 2700, Reddit’s /r/overclocking wiki mentions a really helpful most Vcore of 1.38V for a load temp under 70 levels Celcius, or 1.33V for a load temp under 85 levels Celcius. We are going to use the suggestions going ahead, however it’s best to by no means assume one thing is secure till you try it out for your self.

2. Now, enter your BIOS by urgent the F2 or Delete key because the system begins booting up. You possibly can consult with this information for assistance on coming into the BIOS, because it consists of two strategies to enter the setup utility by means of Home windows OS itself. Additionally, when your PC first begins up it at all times shows the important thing to enter BIOS for just a few seconds.

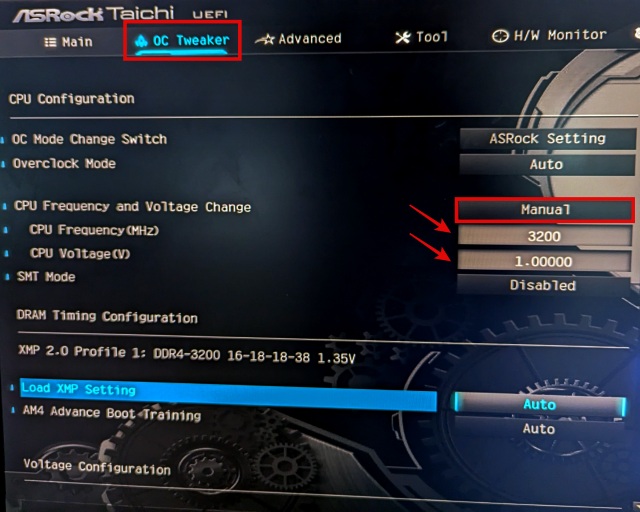

3. Subsequent, once you’re within the BIOS, navigate to the CPU overclocking or configuration part, with the assistance of your motherboard’s handbook. For our ASRock motherboard, this was in OC Tweaker. Right here, you’ll be able to change the CPU Frequency and Voltage settings from Auto, to Handbook. Then, you’ll be able to modify the CPU frequency and voltage respectively right here to manually overclock your CPU. It is best to incrementally enhance each of those primarily based on the suggestions that your analysis gave you, within the final step. After each incremental enhance, do guarantee stability by referring to our benchmarking & stress-testing part.

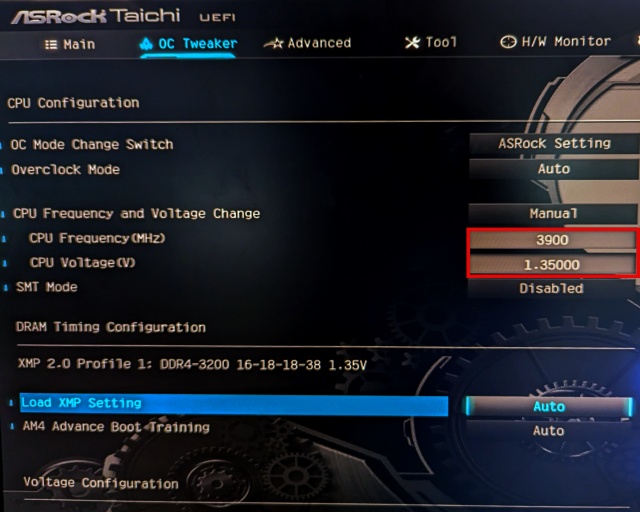

For us, the Ryzen 7 2700’s CPU frequency was set at 3200MHz which we had been in a position to enhance to 3900MHz. The voltage was set to 1.00V which we needed to enhance to 1.35V to efficiently pull off the all-core OC of three.90GHz. We consider we are able to decrease the voltage for higher thermals with some stress-testing by reducing it in increments of 0.05, to get as near 1.3V as doable. Needless to say if the voltage is simply too low, it may end up in a system crash. You are able to do one thing comparable, however this was all simply to provide you an instance of a primary understanding of handbook overclocking. Each CPU’s optimum voltage vary and max supported overclocked frequency will likely be totally different.

4. Good job! You might have efficiently learnt the fundamentals of tips on how to manually overclock your CPU. If you wish to dig deeper in handbook overclocking, there are different settings you’ll be able to change too. There’s the SOC voltage, and you may even set totally different frequencies for particular person cores as a substitute of doing an all-core OC like we confirmed you above. Doing that may require you to establish the most effective, most effective cores first. Welcome to the world of handbook overclocking. As you’ll be able to see, lots of experimentation and time will be spent with the huge quantity of settings which might be obtainable for tuning your CPU. We suggest you to discover all the things, analysis on what every choice does, earlier than you tinker with it.

Stress Check and Benchmark Your CPU

1. First, obtain & set up HWInfo from this hyperlink. This is a wonderful app for monitoring thermals, verify for thermal throttling, and likewise confirm issues like your motherboard’s temperatures.

2. Subsequent, obtain & set up Cinebench R23 from this hyperlink. We are going to use it as an artificial benchmark, for measuring the CPU’s multi-core & single-core efficiency.

3. Now, open Cinebench R23. Subsequent, click on “Begin” subsequent to the Multi-Core and Single-Core choices on the prime left to run the benchmark. Observe down the numbers you get. Examine the rating to what you bought beforehand once you first ran this benchmark on inventory settings. Be certain there is a rise in both single-core or multi-core efficiency, which might imply the overclock has benefitted your efficiency for certain.

4. Subsequent, it’s best to take a look at for stability by performing a stress take a look at. To take action, outline the Minimal Check Length to half-hour. Then, begin the CPU (Multi-Core) benchmark which can now loop for the subsequent half-hour. In case your PC doesn’t shut off throughout this whole 30-minute interval, it has efficiently handed the Cinebench R23 30-minute stability take a look at. But when it does, instantly return to the inventory settings.

We now have had an expertise the place the PC could be utterly secure in any workload, however not on this prolonged stress take a look at. And that’s the reason we suggest you carry out a correct stress take a look at with this artificial benchmark, somewhat than counting on XTU or Ryzen Grasp to your stress take a look at.

Whereas this stress take a look at goes on for the subsequent half hour, you should use HWInfo to observe CPU and motherboard VRM temperatures, and it’ll additionally let you know if the CPU is thermal throttling or not. Be sure you preserve observe all of those, and if any of them overheat past your expectations, it’s best to optimize your settings additional.

Usually, the utmost acceptable thermals for a CPU needs to be 95 levels Celcius and the VRM temperature needs to be below 90 levels Celcius. There will likely be occasions once you use your pc for prolonged workloads, so it’s higher to goal for total decrease temperatures, with a light overclock, somewhat than attempt to utterly exhaust your temperature overhead.

5. Subsequent, confirm that the overclock helps you get higher efficiency for your private use instances. This may be something that’s particular to your private work with the pc, like gaming or content material creation functions. Even when the overclock resulted in higher scores in Cinebench, there is perhaps no level to maintain the overclocked profile of your CPU energetic if it doesn’t truly lead to helpful positive aspects in your private use instances.

Except the functions that you just run every day profit from the overclock, we suggest you revert again to inventory settings. The best approach to do this is to make use of Ryzen Grasp or Intel XTU to revert again to the default profile, however if you happen to used the BIOS, you’ll should revert again the OC settings to ‘Auto’ as a substitute of ‘Handbook’ to return to the inventory profile.

6. CPU Stability and Efficiency testing is full. You might have efficiently overclocked your processor, in addition to verified the soundness of your system in its overclocked state.

Ought to You Overclock Your CPU at All? Defined

Processors have already got a characteristic known as turbo increase, together with the Thirteenth Gen Intel Raptor Lake CPUs that each one increase past 5GHz and as much as 5.8GHz with the Core i9-13900K that we reviewed. You see, the way in which that turbo boosting works is, it largely applies to the few greatest cores of your CPU, so your numerous workloads instantly get the advantages of quicker frequencies anyway.

Do not forget that your apps and video games profit from numerous totally different points of what your CPU is nice at. For instance, video games profit extra from higher single-core efficiency in CPUs. And productiveness apps are likely to take extra benefit of its multi-core capabilities. So, the uncooked single-core or multi-core efficiency of a CPU is a greater analytical to go on for judging efficiency, somewhat than its frequency (measured in GHz).

CPU overclocking is principally about rising the frequency, proper? True. By overclocking, you’ll get quicker frequencies like we had been in a position to break the 6GHz barrier in the course of the overclocking part of our Core i9-13900K assessment, linked above. However our leads to that state of affairs by way of efficiency numbers was truly slower than inventory settings.

You see, a greater GHz quantity isn’t actually an element with regards to how succesful your processor will be. Even the ten 12 months previous FX-8350 was overclocked to eight.79GHz as soon as, however that doesn’t make it higher than the brand-new Ryzen 9 7950X3D with 3D-V Cache that reinforces as much as 5.7GHz. Overclocking will provide you with a small increase, however typically none as properly. Perhaps, the use case that you really want the PC to attain doesn’t profit out of your overclock, however for another apps, it would. Everybody’s overclocking goes to be totally different primarily based on their mixture of {hardware} in addition to what use-cases are they seeking to see positive aspects in.

One of the best recommendation I can provide you concerning that is if you happen to select to overclock your CPU, by no means overclock in an unsafe method to guard your CPU. Our information is relevant to most customers, and it is possible for you to to extract respectable acquires in efficiency out of the assorted overclocking options we’ll present you tips on how to allow. The chance degree right here is fairly low, since we’ll use the assorted OC options offered by Intel/ AMD and the motherboards themselves.

Then again, the superior part of this overclocking information is solely reserved for individuals who don’t thoughts taking the next threat to manually overclock their CPU. Normally, the motivation to do this comes from attempting to hit higher benchmark numbers or get positive aspects in multi-core workloads. Additionally, fanatic SFF customers (small type issue PCs) have been manually setting their CPU frequency and voltage to a static quantity for fairly someday, in order that it by no means goes past their preferable TDP. Normally, that is an underclock for the reason that CPU might manually turbo past the frequency they set.

Apart from that, you should at all times take a look at the soundness of your overclock and likewise if it even resulted in higher efficiency to your use-cases. If it didn’t, possibly it is going to carry out higher in sure functions that don’t fall below your use-case. But when it isn’t value it to you, return to the earlier inventory settings in any other case you’ll merely be working your CPU at worse temperatures, nothing else. We will certainly show you how to stress-test and take a look at the soundness of your CPU and likewise take a look at the overclocking outcomes to see if you happen to acquired any advantages,.

We suggest most customers to steer clear of attempting to manually overclock their CPU as a result of the present fashionable period of CPUs and motherboards all already embrace glorious overclocking options by default. You possibly can merely flip them on, and their threat degree is fairly low. Aside from that, additionally they have turbo increase capabilities that profit all workloads. In lots of instances, processors don’t carry out optimally with handbook overclocks with unwanted effects corresponding to increased idle temperatures, random temperature spikes, and infrequently, a efficiency loss.

Merely put, handbook overclocking is generally for fanatics who need to see how far they will push the CPU for experimental, or like we mentioned earlier than, to get the most effective benchmark outcomes. Some like to achieve the corridor of fame in 3DMark with their excessive dual-GPU techniques. Nonetheless, a small part of PC {hardware} fanatics likes to manually overclock their CPU, which may nonetheless be impactful relying in your processor.

Must you overclock your CPU then? It’s utterly as much as you. This OC information needs to be useful to just about anybody, and it’ll show you how to get quantity of additional efficiency with out an excessive amount of threat. So, for many instances, keep on with primary overclocking, which has lots of deserves somewhat than attempting to manually OC, which comes with an excessive amount of legal responsibility for most individuals.
